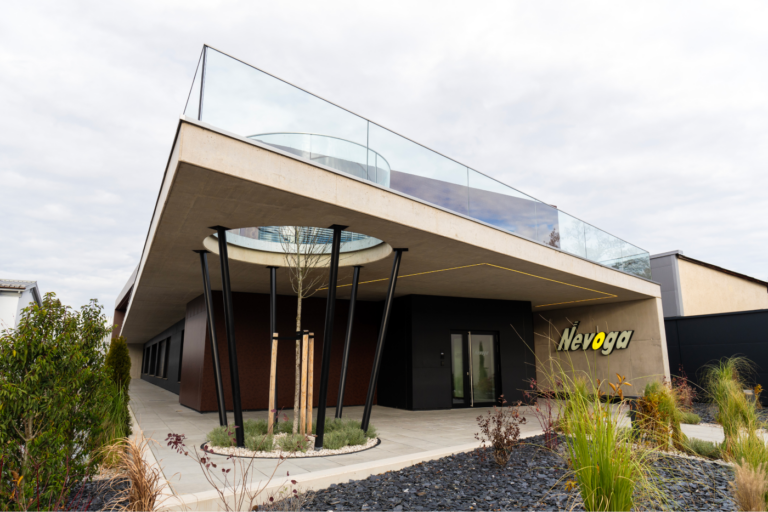

Smart Office New Building
- Country DE, Freilassing
- Build year 2024
- Area 1000 m2 m²
- LOXONE partner LOXHOME24 GmbH & Co. KG

Challenge
The project presented several challenges. The building not only had to meet current requirements, but also allow the adjacent old building to be integrated into the control concept in the future. Particular attention was paid to cross-trade integration in order to seamlessly connect systems such as lighting, shading, heating, cooling, ventilation, a photovoltaic system, e-charging stations and other components.
The technical requirements included the integration of numerous systems such as lighting control, external blinds, individual room controls for underfloor heating, cooling ceilings and air conditioning, as well as a photovoltaic system with Fronius inverters and a heat pump. In addition, a charging park was installed in the underground garage with 22 kW wall boxes from Alfen. Outdoor loudspeakers with a Master/Client solution were also part of the concept. Another key objective was the intuitive and user-friendly operability of the building automation system for the offices.
Solution
A separate Miniserver was installed in the distribution system for each floor, supported by a power supply and backup solution with an integrated battery. The lighting control was based on DALI technology, which enabled simple cabling and integration via DALI extensions.
The system comprises impressive numbers: around 160 Valve Actuators for underfloor heating and chilled ceilings, 25 Touch Pure Flex, 8 Tree-to-Air Bridges, 6 AC Control Air and additional AO and Modbus extensions for special requirements.
I am delighted with the continuous development of Loxone. In the beginning, the focus was on the SmartHome in the private sector, but thanks to the constant improvements, mainly in the software, systems of this size are no longer a problem. For me, Loxone is and remains the best solution for building automation, regardless of size. Other systems are often isolated solutions that either require complex export and import processes for visualization or are no longer up to date in their handling. <br /><br /> <br /><br /> Manuel Mösl - CEO Nevoga <br /><br /> <br /><br /> Sustainability is an important aspect for Nevoga. Our Loxone building automation solution makes a significant contribution to sustainability by enabling us to optimize and reduce the energy consumption of our buildings. By integrating photovoltaic systems and efficiently controlling heating, cooling, shading and ventilation, we can reduce our carbon footprint while lowering operating costs. In addition, we have integrated electric car charging stations that enable billing via employees and vehicles. These sustainable measures further our environmental goals and position Nevoga as an environmentally conscious company. <br /><br /> <br /><br /> Overall, we are convinced that Loxone is the optimal choice for Nevoga to make our buildings more efficient, secure and user-friendly. In addition, the outstanding cooperation, comprehensive support and excellent customer service provided by Loxhome24 as an installation partner has reinforced our decision. <br /><br /> <br /><br /> Martin Tontsch - Head of IT Nevoga <br /><br /> <br /><br /> Loxone provides us with a comprehensive and integrated solution that allows us to seamlessly connect and control different systems and devices. With Loxone, we can centrally manage lighting, shading, heating, cooling, ventilation, security systems and much more, which significantly increases efficiency and user-friendliness. Heating, cooling and ventilation are controlled via Modbus, for example, and existing air conditioning systems could also be integrated directly. We have also integrated our photovoltaic systems into the system, enabling efficient use of the solar energy generated. Loxone has also proven to be a reliable and scalable solution. Our buildings and facilities are constantly growing and we need a system that can grow with us. Existing parts of the building can be integrated very easily and thus revitalized. Loxone offers the flexibility and scalability we need to easily integrate future expansions and adaptations. The Loxone platform is characterized by its user-friendliness and intuitive operation, making it easy for our employees to use. The user-friendly visualization interface allows for quick adjustments and optimization of parameters for better control and management of our buildings. Small programming adjustments can even be easily made in-house via Loxone Config.
Christian Hufnagl, Operations Manager Loxhome24
Products
- Air Base Extension · 100114
- Modbus Extension · 100124
- RGBW 24V Dimmer Air · 100125
- Nano IO Air · 100153
- Touch for Nano White · 100154
- Tree Extension · 100218
- Tree Extension · 100218
- Presence Sensor Tree White · 100422
- Nano DI Tree · 100242
- Weather Station Tree · 100246
- Room Comfort Sensor Tree White (CO2, Temperature, Humidity) · 100276
- Shading Actuator Air · 100290
- Miniserver · 100335
- AO Extension · 100382
- Miniserver Compact · 100512
- AO Extension · 100382
- Power Supply & Backup · 100401
- Presence Sensor Tree White · 100422
- Tree to Air Bridge · 100451
- Touch Pure Flex IP44 Tree Anthracite · 100609
- AC Control Air for Mitsubishi Electric · 100555
- AC Control Air for Daikin S21 · 100556
- DALI Air · 100570
- Satellite Speaker IP64 Master Black · 610156
- Satellite Speaker IP64 Client Black · 610157
