Schüren tax advice & auditing

  • Country DE, Bochum
  • Build year 1980
  • Area 520 m² m²
  • LOXONE partner BSG - Elektro-Schaltanlagen GmbH
Schüren tax advice & auditing

Challenge

For Steuerberatung Schüren, it was important that as much as possible could be controlled automatically in the individual rooms, with constant light control, and the individual room temperature control for heating and cooling to be implemented in connection with the presence. As well as access in connection with an alarm function.

Solution

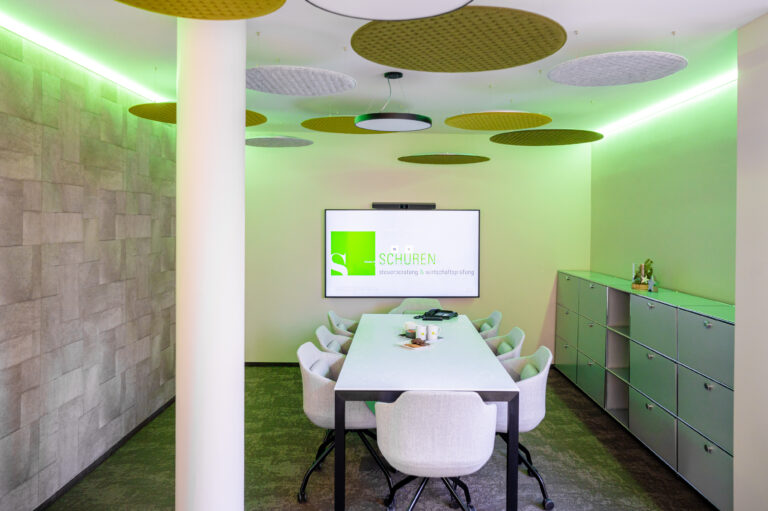

In each room, constant light control with Dali work area lights and RGBW LED strips installed indirectly in the acoustic panels is implemented via the presence detectors in the work areas. The RGBW LED strips also ensure a depth perception of the rooms visible from the outside at night.

On the one hand, the outdoor lighting is controlled by a timer,

but is also based on sunrise and twilight – as is the billboard.



If the first employee opens the main entrance door or underground car park door using an NFC code touch or NFC key fob in the morning, the alarm system is also deactivated. When the alarm system is activated, central functions reset the room temperature to predefined standard values and deactivate all air conditioning units.

Almost every customer request can be implemented, the simple operation and the maximum degree of automation of the functions that can be adapted to the needs are simply convincing.

Philipp Ostermann, BSG - Elektro-Schaltanlagen GmbH

Products

  • Miniserver · 100335
  • Relay Extension · 100038
  • RGBW 24V Dimmer Tree · 100239
  • Touch Tree White · 100221
  • Smoke Detector Air · 100142
  • Alarm Siren Tree · 100313
  • NFC Code Touch Tree Signal White · 100481
  • Dimmer Extension · 100029
  • Air Base Extension · 100114
  • Door & Window Contact Sensor · 200113
  • Presence Sensor Tree White · 100422
  • Flush-mounted Presence Sensor Tree White · 100466
  • DALI Extension for 64 Devices · 100200
