pool control
- Country IT, Gardasee
- Build year 2018
- LOXONE partner hekra GmbH
Challenge

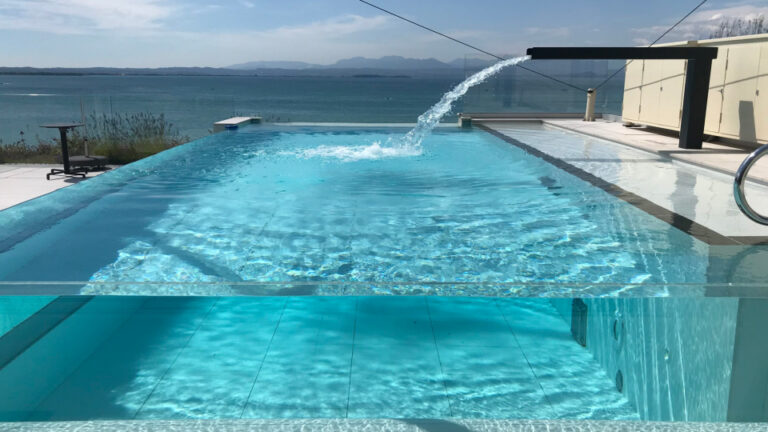

Pool control on roof terrace.
The entire control of the pool was implemented and monitored with Loxone.
The entire control of the pool was implemented and monitored with Loxone.
Solution
Overflow pool was monitored with an ultrasonic sensor - outside temperature sensor and weather station, control of the pool cover - Belimo drives were controlled via Relay Extension and status displays via DI Extension - circulating pump and air heat pump were controlled via a 0-10V pressure sensor, as well as a frequency converter for the pump 0-10V - 1-Wire Temperature sleeve sensor for flow temperature - Various alarm messages, dosing system and condition of Belimo drives - Waterfall and lighting also controlled via app - Backwash controlled automatically
Loxone is the perfect solution and everything from a single source for such special projects.
hekra GmbH
