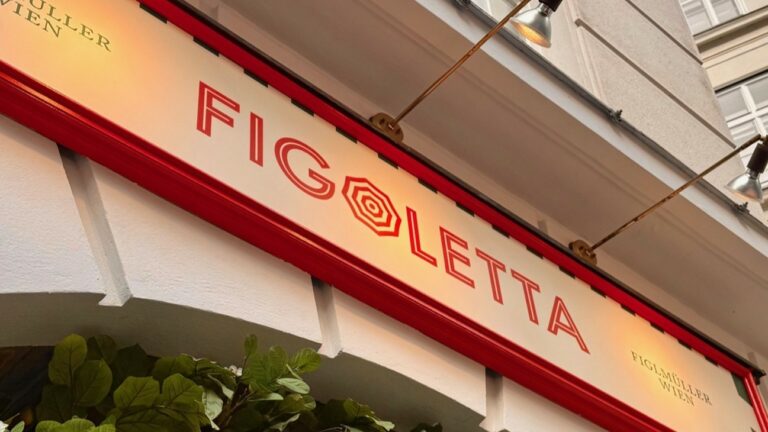

Figoletta Figlmüller
- Country AT, 1010 Wien
- Build year 08.2025
- Area 150 m2 m²
- LOXONE partner Licht & Elektrotechnik PAAR GmbH
Challenge
Since Figoletta is a temporary pop-up restaurant, it quickly became clear that flexibility and rapid implementation were paramount. Rewiring the existing lights wasn't possible, so Loxone Air technology was chosen to implement a powerful, wireless control system. The goal was to create an automated lighting concept that would seamlessly integrate into the restaurant's day-to-day operations, coordinated with cleaning, daytime operations, and evening ambiance—all without traditional cabling. At the same time, it was necessary to integrate a third-party system for door monitoring and secure the refrigeration technology.
Solution
Lighting:
The entire lighting control system is based on Loxone Air components and is configured to be activated with a simple key switch:
> Early in the morning, the cleaning mood starts automatically as soon as the premises are entered.
> Shortly before opening, the system switches to the daytime mood, which can be adjusted by the customer at any time.
> The evening mood is dynamically based on sunset; this can be manually shifted by the customer by ±60 minutes.
> The nighttime mood takes effect at 9:00 p.m. by default. If sunset occurs after 8:00 p.m. (e.g., 8:30 p.m.), it is automatically activated one hour later—in this case, at 9:30 p.m. This ensures a harmonious lighting atmosphere at all times.
Door monitoring:
The cellar doors are equipped with a third-party system provided by the customer. This was integrated into the Loxone system using potential-free inputs.
> When opened, the door can be held open by a door holding magnet; the time period is individually configurable.
> If the door is not closed in time, an alarm is triggered and sent to the restaurant manager via push notification.
> If the door is opened without authorization, an alarm is triggered immediately. A manual reset is required to reset the alarm.
Cold storage monitoring:
Cold storage and freezer rooms are continuously monitored.
> If the target temperature is exceeded by more than one hour, an initial push notification is sent.
> As long as the temperature does not return to the target range, a further notification is sent hourly.
> All temperature values are continuously recorded for traceability and HACCP documentation.
The entire lighting control system is based on Loxone Air components and is configured to be activated with a simple key switch:
> Early in the morning, the cleaning mood starts automatically as soon as the premises are entered.
> Shortly before opening, the system switches to the daytime mood, which can be adjusted by the customer at any time.
> The evening mood is dynamically based on sunset; this can be manually shifted by the customer by ±60 minutes.
> The nighttime mood takes effect at 9:00 p.m. by default. If sunset occurs after 8:00 p.m. (e.g., 8:30 p.m.), it is automatically activated one hour later—in this case, at 9:30 p.m. This ensures a harmonious lighting atmosphere at all times.
Door monitoring:
The cellar doors are equipped with a third-party system provided by the customer. This was integrated into the Loxone system using potential-free inputs.
> When opened, the door can be held open by a door holding magnet; the time period is individually configurable.
> If the door is not closed in time, an alarm is triggered and sent to the restaurant manager via push notification.
> If the door is opened without authorization, an alarm is triggered immediately. A manual reset is required to reset the alarm.
Cold storage monitoring:
Cold storage and freezer rooms are continuously monitored.
> If the target temperature is exceeded by more than one hour, an initial push notification is sent.
> As long as the temperature does not return to the target range, a further notification is sent hourly.
> All temperature values are continuously recorded for traceability and HACCP documentation.
The Figoletta demonstrates how smart and reliable automation is possible even in temporary projects with challenging existing structures. Loxone Air allows maximum flexibility with a full range of functions and a professional standard.
Stefan Pably, foreman
Products
- Miniserver · 100335
- Air Base Extension · 100114
- Nano IO Air · 100153
- RGBW 24V Compact Dimmer Air · 100324
- Nano Dimmer Air · 100212
- 1-Wire Extension · 100014
- 1-Wire temperature sensor set · 200109
