New: Shading Actuator Air


17th October 2017 in Technology

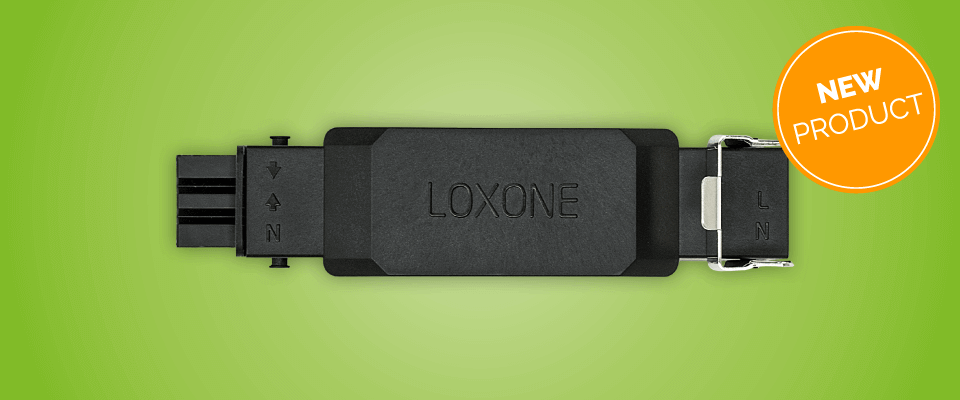

We are proud to present the new Shading Actuator Air. The Shading Actuator Air allows you to quickly and easily integrate blind motors into a Loxone Smart Home.

Whether you are using electric shutters, blinds or awnings, the new Shading Actuator Air allows you to integrate your shading into a Loxone Smart Home in a few simple steps, thanks to in-built Loxone Air technology.

Collage Beschattung

STANDARDISED HIRSCHMANN CONNECTOR

Thanks to standardised STAS 3 / STAK 3 – also known as a Hirschman connector – you can integrate almost any type of shading motor into a Loxone Smart Home. The watertight plug-in connection is simply connected between the supply line and the motor and reliably secured with the integrated clamp.

Due to the two individually controllable relays (2 x 5A) and the protection class IP54 (splash-proof), the Shading Actuator Air is suitable not only for shading but also for other applications; for example for switching on external lighting or a garden pump.”

FULLY AUTOMATIC END STOP DETECTION

The new Shading Actuator Air automatically detects the end stops of your blinds. This means not only a considerable time saving during commissioning, but also saves time-consuming recalibration of the travel times. Through the fully automatic end stop detection, you can straight away see the current position of your blinds in your visualisation.

All further technical details can be found on our webshop:
