Challenge

THIS CONTENT IS AUTOMATICALLY TRANSLATED BY GOOGLE TRANSLATE.
Propose a different management system from a PLC, Siemens Logo, others….
To manage the following requests from the Client:
-Internal and external lighting system;

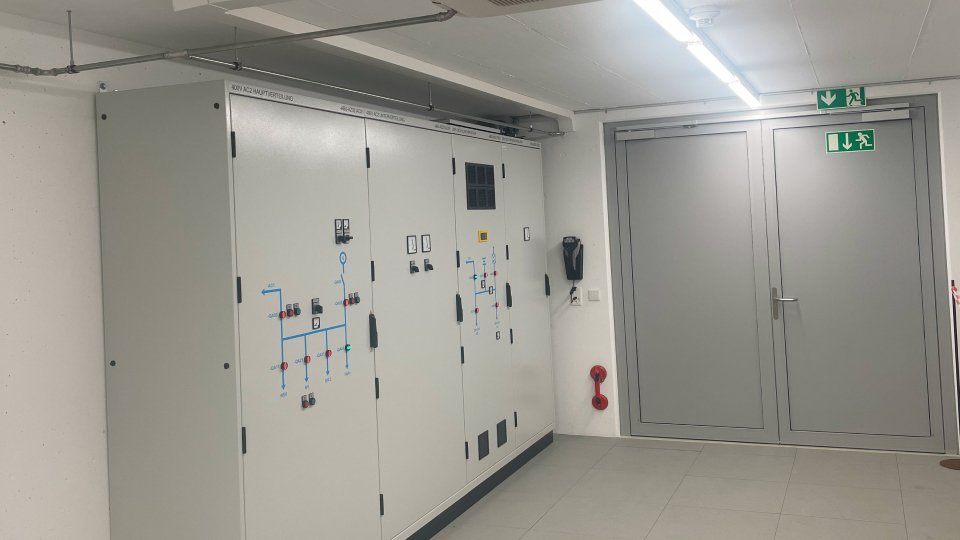

- Control of two climate units for heating and cooling of the local electric grid management switchboards, for which a constant temperature and humidity must be maintained both in winter and summer;

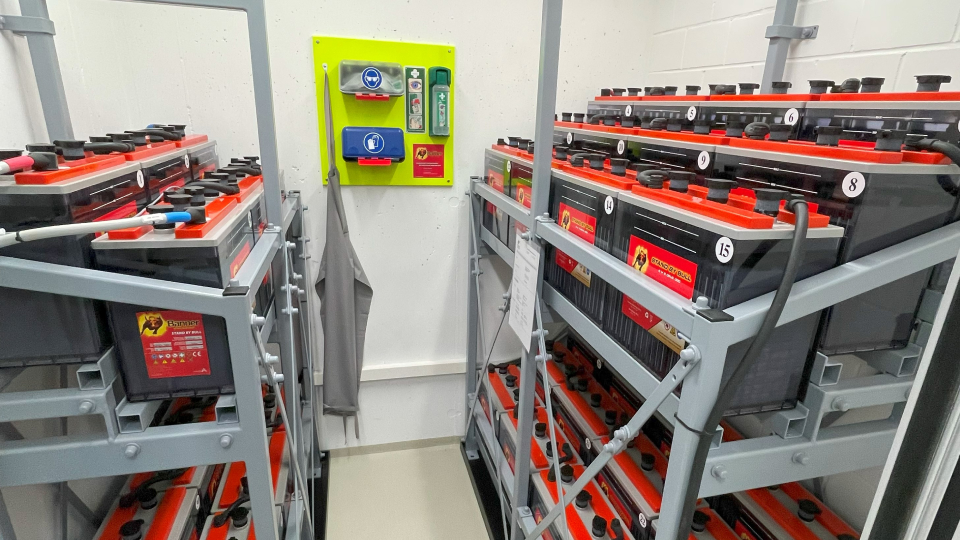

-Control of the forced ventilation of three zones: WC room, UPS battery room, electrical panel room with climate;
- Presence of generator set, when in service forced ventilation block and automatic door opening;
-Presence of fire dampers on the ventilation ducts managed with BSK;
-Presence of fire alarm system, when it intervenes, it sends block commands to the fire dampers, ventilation block, Climate block, door opening, luminous warning with lighting system;

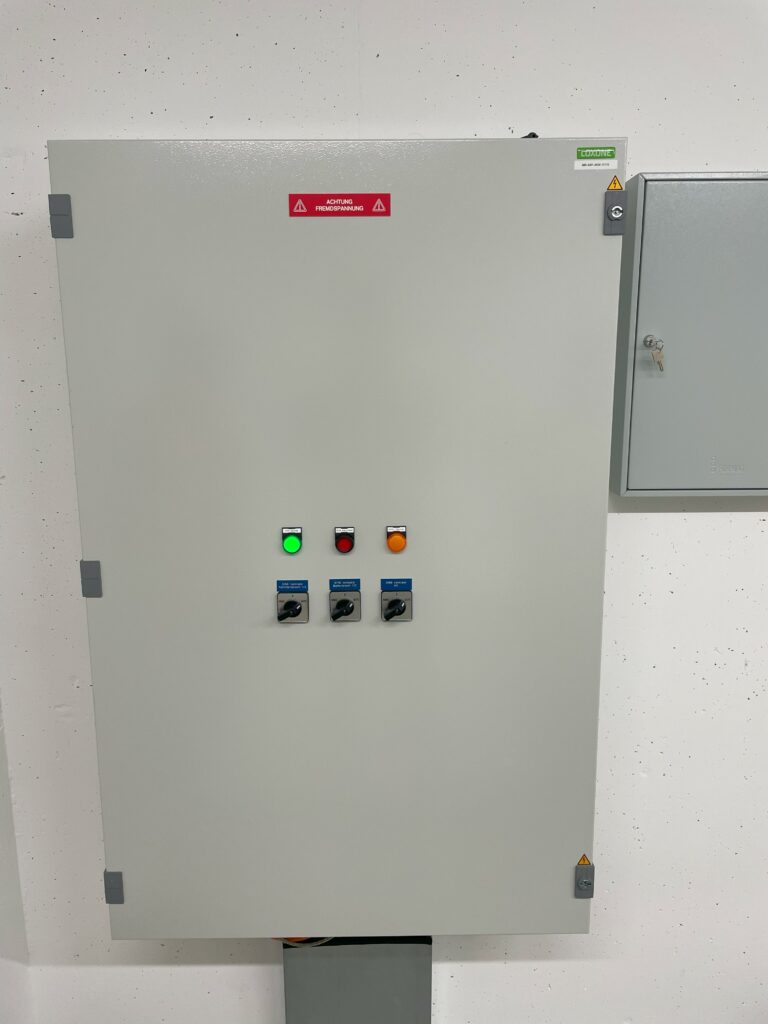

-Touch display on the electrical interface panel;
- Reception of disturbance input or type status: tripping of EF-LS protection devices, ignition of generator set, door opening, opening status of BSK shutters, fire alarm of other device;
-Visualization of temperature and humidity of both cold and climatic rooms;

Solution

THIS CONTENT IS AUTOMATICALLY TRANSLATED BY GOOGLE TRANSLATE.

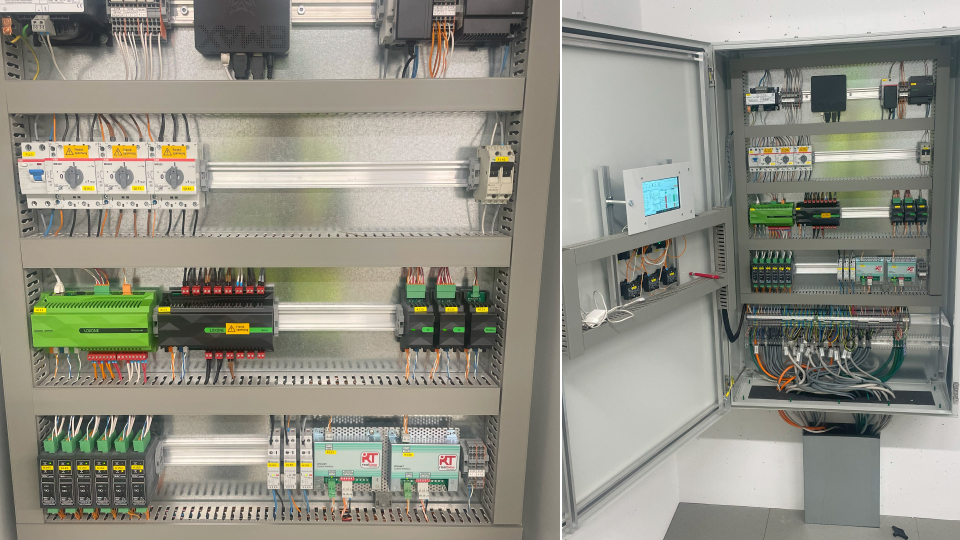

For climate management with Daikin product, the Modbus extension is used and the two Daikin RTD-NET control boards are installed in the switchboard so as to be able to interface and obtain machine commands and displays.

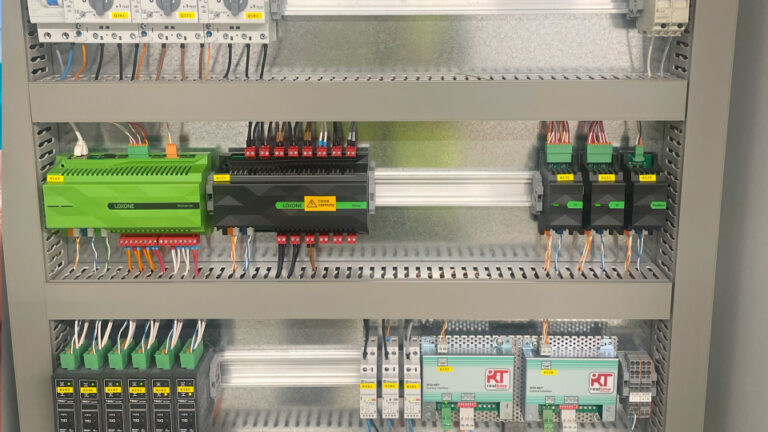

DI extension as regards all the status inputs coming from the electronic boards, alarm, generator, automatic door, fire damper status (BSK), door contacts, auxiliary status contacts on magnetothermal or differential switches;
External temperature and humidity probe for climate management and forced ventilation;
Touch Tree for temperature and humidity detectors of the rooms concerned for Climate and forced ventilation;

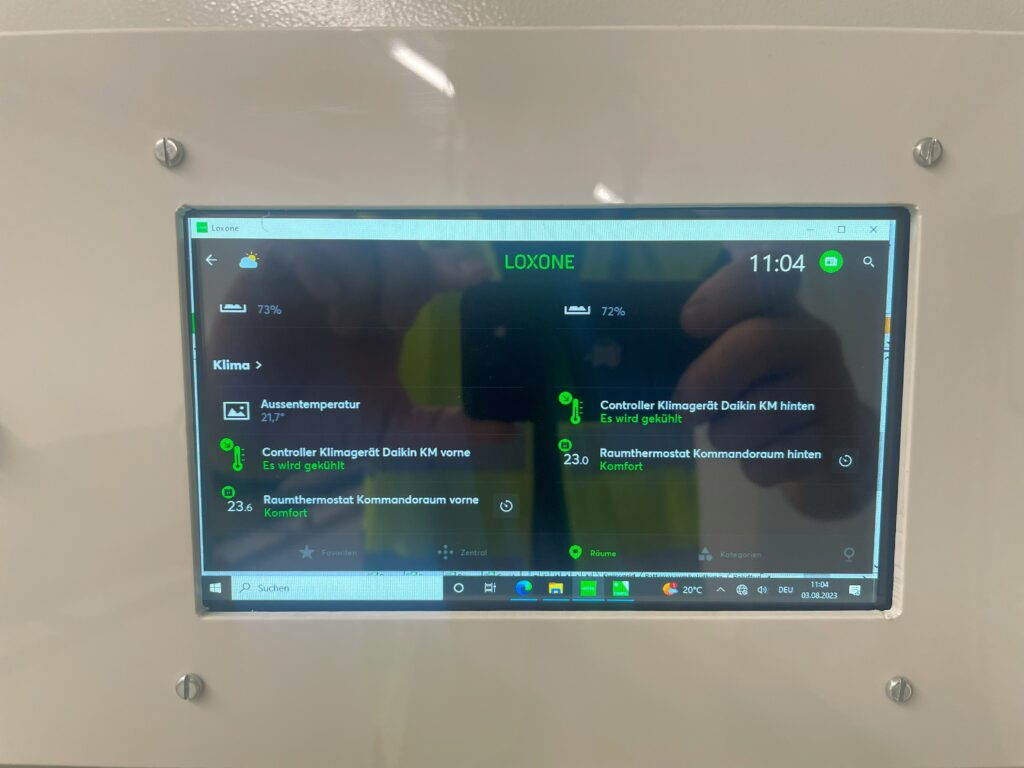

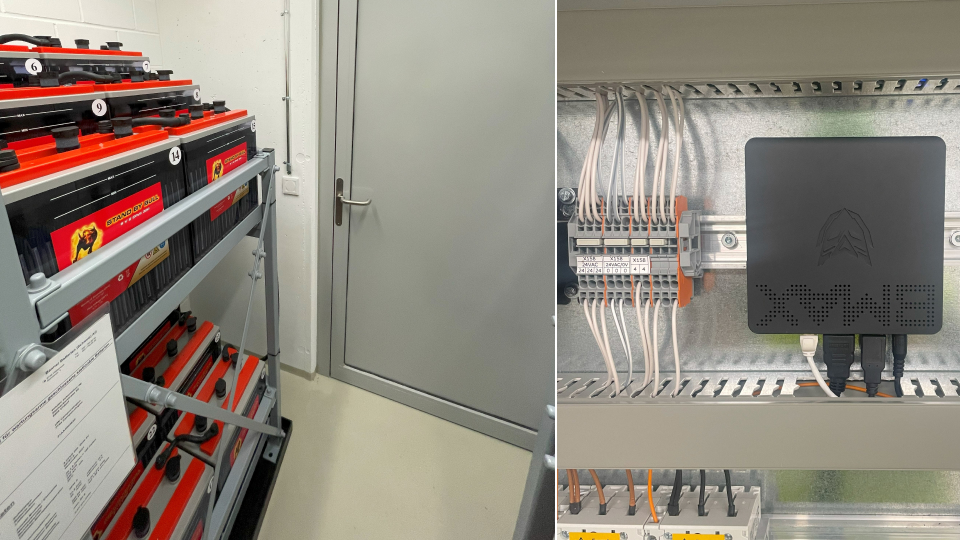

Mini PC coupled with a small touch screen to then use the Loxone app for viewing on the picture

THIS CONTENT IS AUTOMATICALLY TRANSLATED BY GOOGLE TRANSLATE.
Get simplified programming, compared to other PLC or Siemens Logo type systems. Flexibility for changes during construction by the client.
