Fire Pump Control

                                    array(24) {
  ["id"]=>
  int(5175)
  ["name"]=>
  string(17) "Fire Pump Control"
  ["slug"]=>
  string(17) "fire-pump-control"
  ["challenge"]=>
  string(434) "Controlling an 100A pump that supplies a Fire hydrant system at a Business park.

The premesis:

Nightlight controll

Frost protection, by oven.

Get a constant pressure of 5 Bar on the output.

Automatic Maintenance each month; run the pump for 5-10 seconds.

Shutdown when there is no wather on the pump input.

Sentral control panel for ajusting setpoint for pressure, times and heating."
  ["solution"]=>

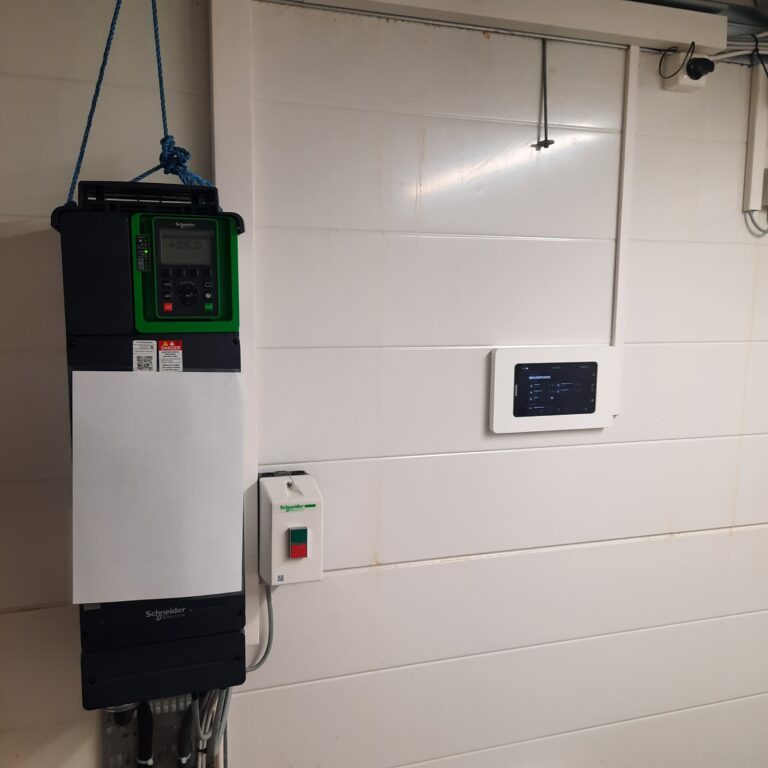

  string(305) "I used a Miniserver Gen 1 due to the amount of Analoge out/ and inputs.

Pressure sensor on intake and output on the pump.

0-10V signal to the frequency converter, and relay output for controlling Start and Frequency/engine speed.



Additional Start/Stop buttons for easy access."
  ["partner_quote"]=>
  string(0) ""
  ["partner_quote_name"]=>
  string(13) "Tor Even Eide"
  ["partner_quote_position"]=>
  string(7) "Manager"
  ["more_info_url"]=>
  string(0) ""
  ["preview_image"]=>
  string(81) "https://portal.loxone.com/admin/wp-content/uploads/2022/12/1671562127-768x768.jpg"
  ["application_areas"]=>
  array(3) {
    [0]=>
    string(8) "lighting"
    [1]=>
    string(7) "heating"
    [2]=>
    string(6) "safety"
  }
  ["tags"]=>
  array(0) {
  }
  ["project_type"]=>
  array(1) {
    [0]=>
    string(19) "special_application"
  }
  ["copyright"]=>
  NULL
  ["images"]=>
  array(4) {
    [0]=>
    array(2) {
      ["image"]=>
      string(83) "https://portal.loxone.com/admin/wp-content/uploads/2022/12/1671562082-1024x1024.jpg"
      ["copyright"]=>
      string(20) "Systemintegrering AS"
    }
    [1]=>
    array(2) {
      ["image"]=>
      string(83) "https://portal.loxone.com/admin/wp-content/uploads/2022/12/1671562101-1024x1024.jpg"
      ["copyright"]=>
      string(20) "Systemintegrering AS"
    }
    [2]=>
    array(2) {
      ["image"]=>
      string(83) "https://portal.loxone.com/admin/wp-content/uploads/2022/12/1671562113-1024x1024.jpg"
      ["copyright"]=>
      string(20) "Systemintegrering AS"
    }
    [3]=>
    array(2) {
      ["image"]=>
      string(83) "https://portal.loxone.com/admin/wp-content/uploads/2022/12/1671562127-1024x1024.jpg"
      ["copyright"]=>
      string(20) "Systemintegrering AS"
    }
  }
  ["country"]=>
  string(2) "NO"
  ["city"]=>
  string(7) "Sogndal"
  ["build_year"]=>
  string(4) "2022"
  ["square_meters"]=>
  string(5) "15 m2"
  ["account_data"]=>
  array(4) {
    ["id"]=>
    string(36) "95092bfd-a46e-4424-8f09-28563874790f"
    ["name"]=>
    string(20) "Systemintegrering AS"
    ["website"]=>
    string(0) ""
    ["partner_website"]=>
    string(42) "/partner/6900-florø/systemintegrering-as/"
  }
  ["conference"]=>
  string(4) "none"
  ["products"]=>
  array(2) {
    [0]=>
    array(2) {
      ["sku"]=>
      string(6) "100335"
      ["name"]=>
      string(10) "Miniserver"
    }
    [1]=>
    array(2) {
      ["sku"]=>
      string(6) "200031"
      ["name"]=>
      string(37) "Temperature & Humidity Sensor Outdoor"
    }
  }
  ["video"]=>
  string(0) ""
  ["fallback"]=>
  array(8) {
    ["name"]=>
    string(17) "Fire Pump Control"
    ["challenge"]=>
    string(434) "Controlling an 100A pump that supplies a Fire hydrant system at a Business park.

The premesis:

Nightlight controll

Frost protection, by oven.

Get a constant pressure of 5 Bar on the output.

Automatic Maintenance each month; run the pump for 5-10 seconds.

Shutdown when there is no wather on the pump input.

Sentral control panel for ajusting setpoint for pressure, times and heating."
    ["solution"]=>
    string(305) "I used a Miniserver Gen 1 due to the amount of Analoge out/ and inputs.

Pressure sensor on intake and output on the pump.

0-10V signal to the frequency converter, and relay output for controlling Start and Frequency/engine speed.



Additional Start/Stop buttons for easy access."
    ["partner_quote"]=>
    string(0) ""
    ["partner_quote_name"]=>
    string(13) "Tor Even Eide"
    ["partner_quote_position"]=>
    string(7) "Manager"
    ["more_info_url"]=>
    string(0) ""
    ["video"]=>
    string(0) ""
  }
}
