The Nano Dimmer Air integrates conventional line voltage lighting fixtures, such as LED lamps, incandescent bulbs and more into the Loxone ecosystem. Thereby they can become part of lighting moods, alarm lights, all-off-scenes and much more. The optional plug-on module Touch for Nano enables a variety of further control options in the Loxone system.
Table of Contents
Mounting↑

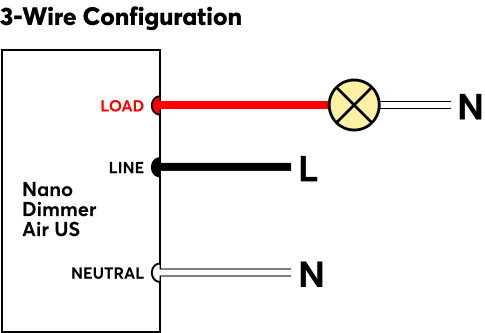

Install the device in a suitable installation box. Connect the device according to the following wiring diagram:
If low power lights like LEDs are used, connect the enclosed LED Dimming Stabilizer, like shown in the diagram above. This solves issues like LED lights slightly glowing when off.
The status LED, the pairing button and the connector for the optional Touch for Nano plug-on module are located on the front:
Commissioning↑
In delivery state, pairing mode will be active after the power supply has been established. This is indicated by the status LED flashing red/green/orange.
Then follow the pairing procedure on the Air Interface.
To activate the pairing mode manually, hold down the pairing button for at least 5 seconds after establishing power supply.
Touch for Nano↑
The optional plug-on module Touch for Nano features five touch points to control the most important functions of a room. When a button is touched, an audible click confirms the action.
The plug-on module snaps onto the Nano Dimmer Air. The assembly is then mounted to the switch/outlet box with the supplied screws.
When using the Touch for Nano plug-on module, it must activated in the properties of the Nano Dimmer Air in Loxone Config. The combined button input T5 will then be available in the peripheral tree.
|
The Touch for Nano's large center touch zone is ideal for controlling the lighting, while the corner zones are suitable for controlling music and shading. It is based on the Loxone switch standard. The buttons can also be freely used for other applications. To use the individual buttons as inputs, activate the checkboxes in the Properties window. The audible confirmation can also be disabled here. |
Sensors↑
| Summary | Description | Value Range |
|---|---|---|
| T5 | Combined input for the 5 touch points according to the Loxone Switch Standard. | ∞ |
Actuators↑
| Summary | Description | Unit | Value Range |
|---|---|---|---|
| Smart Actuator | Smart Actuator for controlling lighting via compatible Lighting function blocks. | % | 0...100 |
Diagnostic Inputs↑
| Summary | Description | Unit | Value Range |
|---|---|---|---|
| Online Status Nano Dimmer Air (US) | Indicates whether the device can be reached by the Miniserver. Diagnostics for Air devices Diagnostics for Tree devices Diagnostics for Extensions |
Digital | 0/1 |
| System temperature | Provides the internal device temperature. This is often the temperature of the CPU or another location in the device. |
° | ∞ |
| Temperature Shutdown | Input is active, when the outputs of the device have been switched off due to high device temperature. Possible reasons: Ambient temperature too high, outputs overloaded. | Digital | 0/1 |
| Short circuit detected | Digital | 0/1 |
Properties↑
| Summary | Description | Default Value |
|---|---|---|
| Monitor online status | When selected, you will be notified via System Status or the Mailer if the device is no longer available or goes offline. | - |
| Serial number | Serial number of Air device | - |
| Device type | Air device type | - |
| Actuator Type | Use device with Standard Actuator(s) or Smart Actuator(s) Smart Actuators support dynamic fade times and can only be used with the Lighting Controller. |
- |
| Expansion module | Expansion module for Nano IO Air | - |
| Button Behaviour | Specifies the behaviour when a button is pushed. Pulse: Sends a pulse on rising edge OnOff: Sends ON on rising edge and OFF on falling edge, used for long click |
- |
| Type of Dimming | Select method of dimming. Please choose the type of dimming that is appropriate for your fittings. |
- |
Safety Instructions↑
Installation must be carried out by a qualified electrician in accordance with the applicable regulations.
This device must be mounted in an electrical enclosure to ensure protection against contact, water and dust.
This device must not be used as part of safety-critical systems.
