Loxone Support Community › Category: Products › Surface Touch Template does not match the LEDs?
0 Vote Up Vote Down
5 years ago
Surface Touch Template does not match the LEDs?

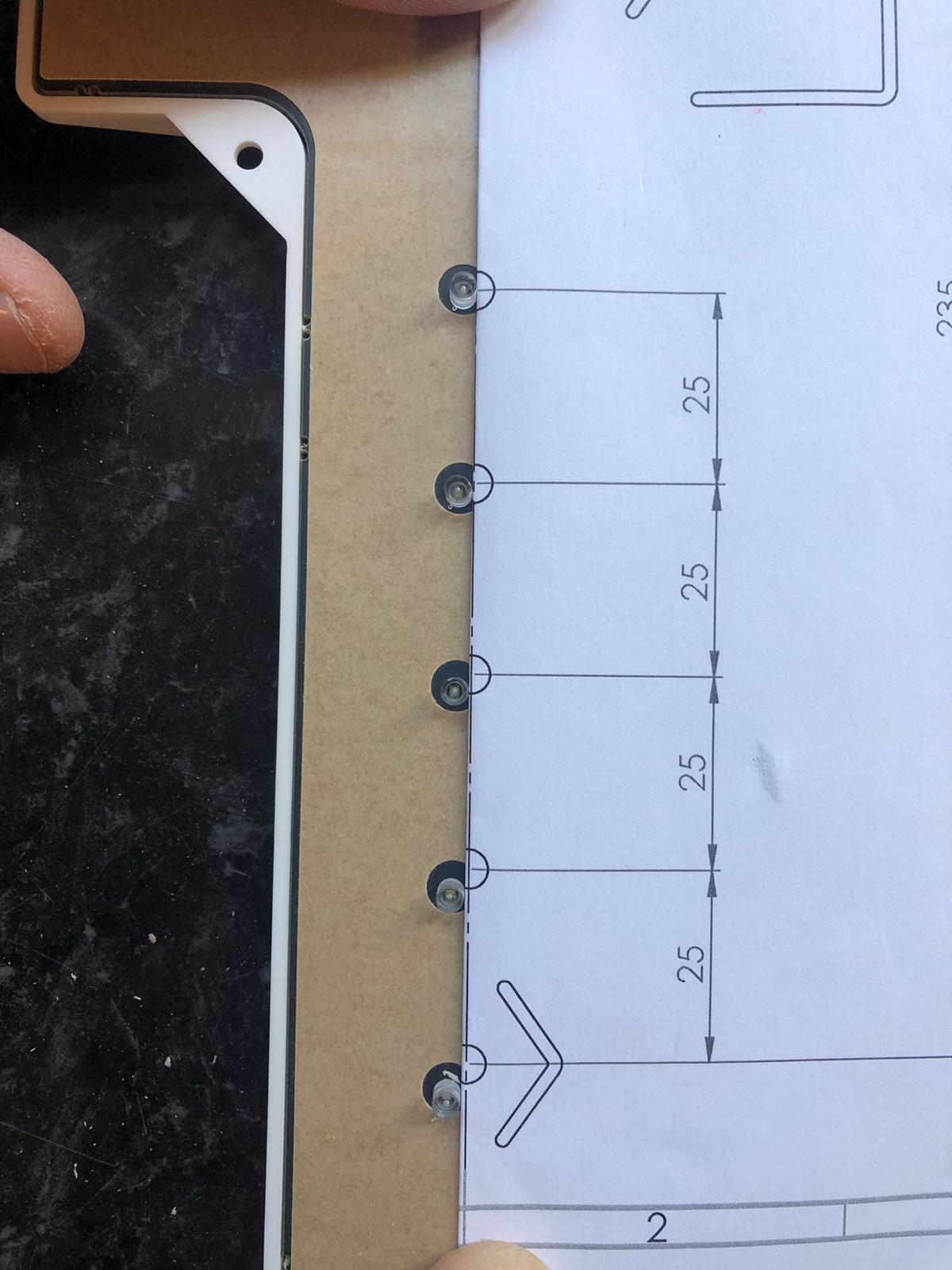

It was noticed (just in time) that the template supplied with the Touch Surface for drilling out the holes for the LEDs does not match the layout on the unit itself. This needs to be corrected if it has not been already, as it could lead to wasted materials and unnecessary costs for your clients.

Attachments
1 Answers
1 Vote Up Vote Down
5 years ago

Not seen that before.
When you printed the template, did you make sure that it was set to print at 100% rather than ‘fit’.
To me, it looks like the printer has reduced the scale to accomodate margins.
Print at 100% and try again. Let us know how that worked.
