array(23) {
["id"]=>
int(7237)
["name"]=>

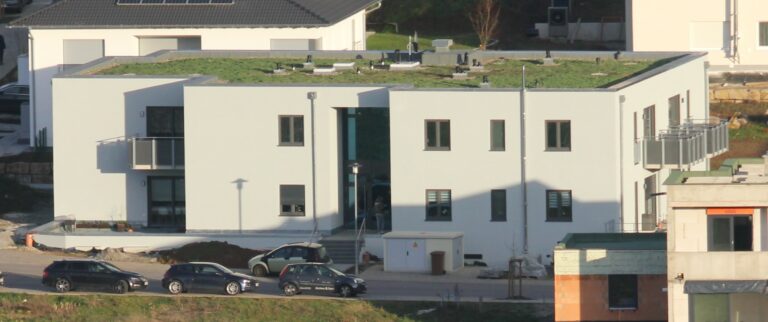

string(28) "8 residential units in Weike"
["slug"]=>
string(22) "housing-units-in-weike"
["challenge"]=>
string(622) "In this residential complex, 8 residential units were equipped with Loxone building automation. The residents now enjoy the benefits of intelligent lighting, shading and heating and cooling, and the individual access control options are very easy to use.
During the planning and construction phase, the team worked in cooperation with an external electrician. The electrician had no previous experience with building automation, and the installation of a control cabinet with Loxone was new to him. Thanks to the simplicity of Loxone, the collaboration was a complete success despite his lack of experience."
["solution"]=>
string(642) "All apartments have the same building automation system features with their own Miniserver. All Touch switches, Presence Sensors, 230V smart blinds and the lighting were routed with Loxone Tree Bus in the control cabinet on terminal strips. The actuators were connected to the Loxone Dimmer and Relay Extensions. The floor heating actuators are controlled with Loxone Tree and the desired temperatures can be specified for each room via a Touch Pure Flex switch. A central Miniserver handles access control for the main entrance, side entrance and underground car park. Each tenant received several RFID tags for general and apartment access."
["partner_quote"]=>
string(174) "Contrary to all the recommendations of the specialist planners, architects and site managers who were sceptical about building automation, the project was a complete success."
["partner_quote_name"]=>
string(19) "Thomas Schildknecht"
["partner_quote_position"]=>
string(0) ""
["more_info_url"]=>
string(0) ""
["preview_image"]=>
string(81) "https://portal.loxone.com/admin/wp-content/uploads/2023/07/1688737348-768x322.jpg"
["application_areas"]=>
array(5) {
[0]=>
string(8) "lighting"
[1]=>
string(7) "shading"
[2]=>
string(7) "heating"
[3]=>
string(11) "ventilation"
[4]=>
string(6) "access"
}
["tags"]=>
array(0) {
}
["project_type"]=>
array(1) {
[0]=>
string(10) "apartments"
}
["copyright"]=>
NULL
["images"]=>
array(6) {
[0]=>
array(2) {
["image"]=>
string(82) "https://portal.loxone.com/admin/wp-content/uploads/2023/07/1688737348-1024x429.jpg"
["copyright"]=>
string(12) "Schildknecht"
}
[1]=>
array(2) {
["image"]=>
string(82) "https://portal.loxone.com/admin/wp-content/uploads/2023/07/1688737463-683x1024.jpg"
["copyright"]=>
string(12) "Schildknecht"
}
[2]=>
array(2) {
["image"]=>
string(82) "https://portal.loxone.com/admin/wp-content/uploads/2023/07/1688737516-1024x683.jpg"
["copyright"]=>
string(12) "Schildknecht"
}
[3]=>
array(2) {
["image"]=>
string(82) "https://portal.loxone.com/admin/wp-content/uploads/2023/07/1688737557-1024x683.jpg"
["copyright"]=>
string(12) "Schildknecht"
}
[4]=>
array(2) {
["image"]=>
string(82) "https://portal.loxone.com/admin/wp-content/uploads/2023/07/1688737805-1024x768.jpg"
["copyright"]=>
string(12) "Schildknecht"
}
[5]=>
array(2) {
["image"]=>
string(82) "https://portal.loxone.com/admin/wp-content/uploads/2023/07/1688738108-1024x768.jpg"
["copyright"]=>
string(12) "Schildknecht"
}
}
["country"]=>
string(2) "DE"
["city"]=>
string(0) ""
["build_year"]=>
string(0) ""
["square_meters"]=>
string(0) ""
["account_data"]=>
array(4) {
["id"]=>
string(36) "e432f023-f3ab-488e-8848-36e55b526a0d"
["name"]=>
string(15) "Schildknecht AG"
["website"]=>
string(0) ""
["partner_website"]=>
string(36) "/partner/71711-murr/schildknecht-ag/"
}
["conference"]=>
string(4) "none"
["video"]=>
string(0) ""
["fallback"]=>
array(8) {
["name"]=>
string(28) "8 residential units in Weike"
["challenge"]=>
string(622) "In this residential complex, 8 residential units were equipped with Loxone building automation. The residents now enjoy the benefits of intelligent lighting, shading and heating and cooling, and the individual access control options are very easy to use.
During the planning and construction phase, the team worked in cooperation with an external electrician. The electrician had no previous experience with building automation, and the installation of a control cabinet with Loxone was new to him. Thanks to the simplicity of Loxone, the collaboration was a complete success despite his lack of experience."
["solution"]=>
string(642) "All apartments have the same building automation system features with their own Miniserver. All Touch switches, Presence Sensors, 230V smart blinds and the lighting were routed with Loxone Tree Bus in the control cabinet on terminal strips. The actuators were connected to the Loxone Dimmer and Relay Extensions. The floor heating actuators are controlled with Loxone Tree and the desired temperatures can be specified for each room via a Touch Pure Flex switch. A central Miniserver handles access control for the main entrance, side entrance and underground car park. Each tenant received several RFID tags for general and apartment access."
["partner_quote"]=>
string(174) "Contrary to all the recommendations of the specialist planners, architects and site managers who were sceptical about building automation, the project was a complete success."
["partner_quote_name"]=>
string(19) "Thomas Schildknecht"
["partner_quote_position"]=>
string(0) ""
["more_info_url"]=>
string(0) ""
["video"]=>
string(0) ""
}
}
In this residential complex, 8 residential units were equipped with Loxone building automation. The residents now enjoy the benefits of intelligent lighting, shading and heating and cooling, and the individual access control options are very easy to use.
During the planning and construction phase, the team worked in cooperation with an external electrician. The electrician had no previous experience with building automation, and the installation of a control cabinet with Loxone was new to him. Thanks to the simplicity of Loxone, the collaboration was a complete success despite his lack of experience.
Solution

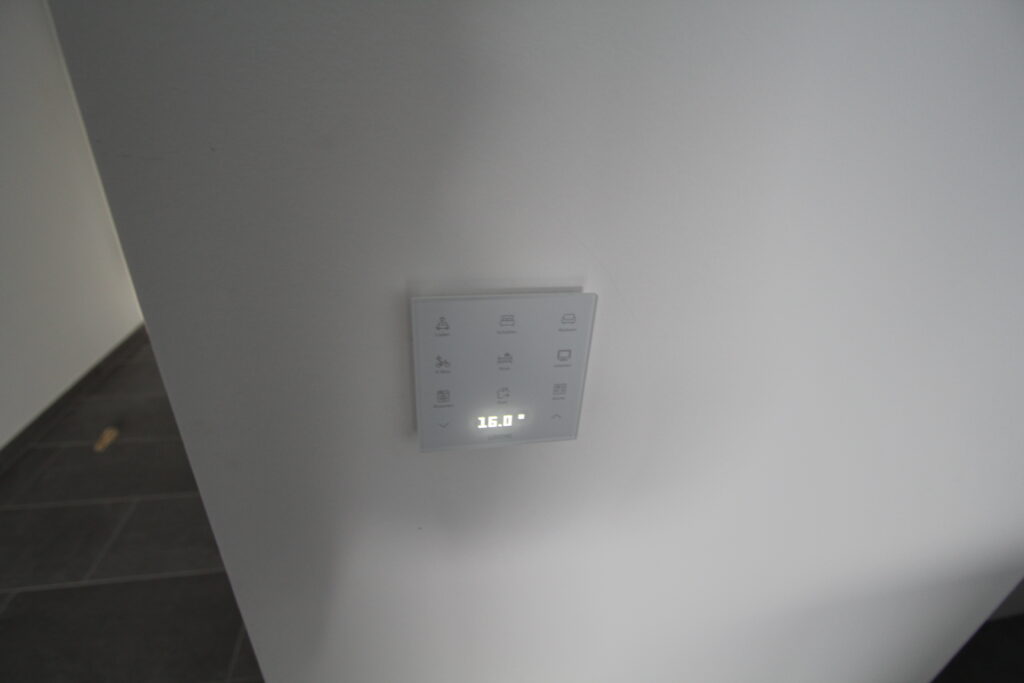

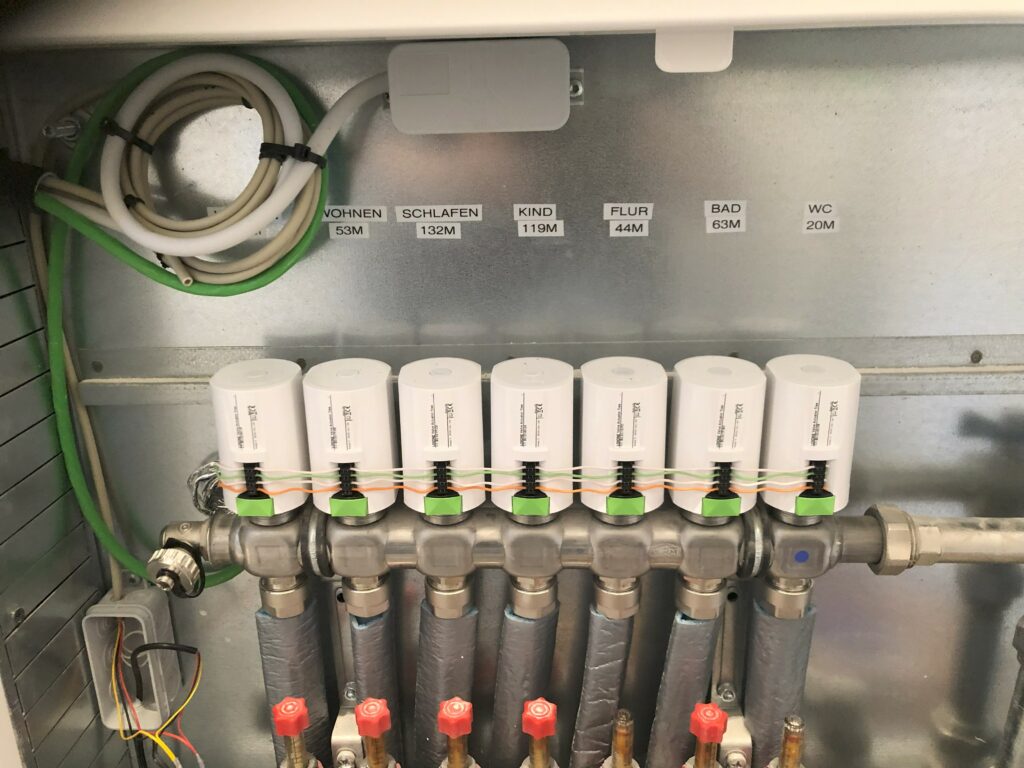

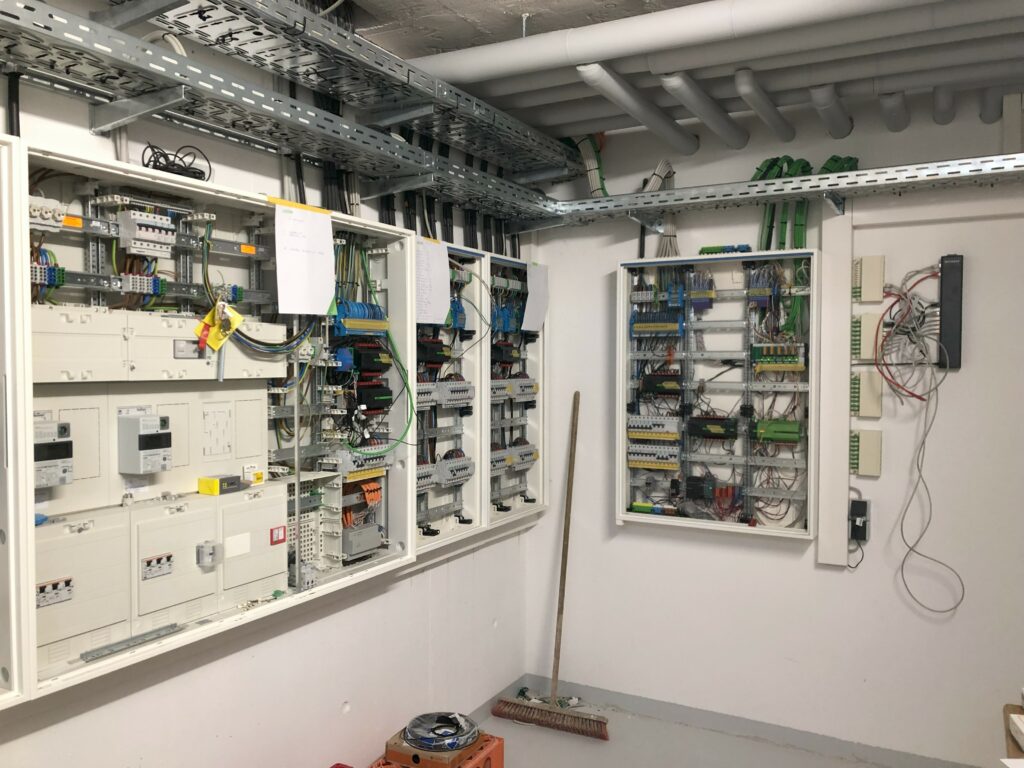

All apartments have the same building automation system features with their own Miniserver. All Touch switches, Presence Sensors, 230V smart blinds and the lighting were routed with Loxone Tree Bus in the control cabinet on terminal strips. The actuators were connected to the Loxone Dimmer and Relay Extensions. The floor heating actuators are controlled with Loxone Tree and the desired temperatures can be specified for each room via a Touch Pure Flex switch. A central Miniserver handles access control for the main entrance, side entrance and underground car park. Each tenant received several RFID tags for general and apartment access.
Contrary to all the recommendations of the specialist planners, architects and site managers who were sceptical about building automation, the project was a complete success.
