Sportheim DJK Schönbrunn

                                    array(24) {
  ["id"]=>
  int(18179)
  ["name"]=>
  string(25) "Sportheim DJK Schönbrunn"
  ["slug"]=>
  string(24) "sportheim-djk-schonbrunn"
  ["challenge"]=>

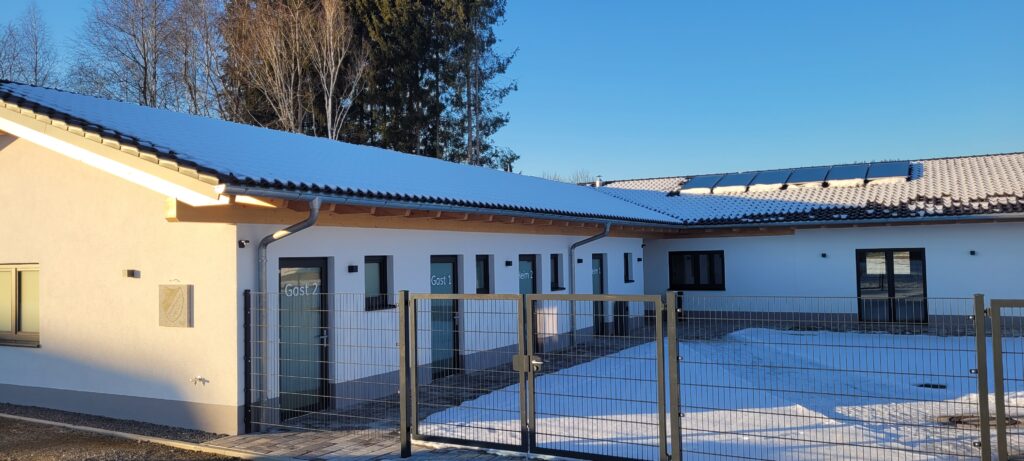

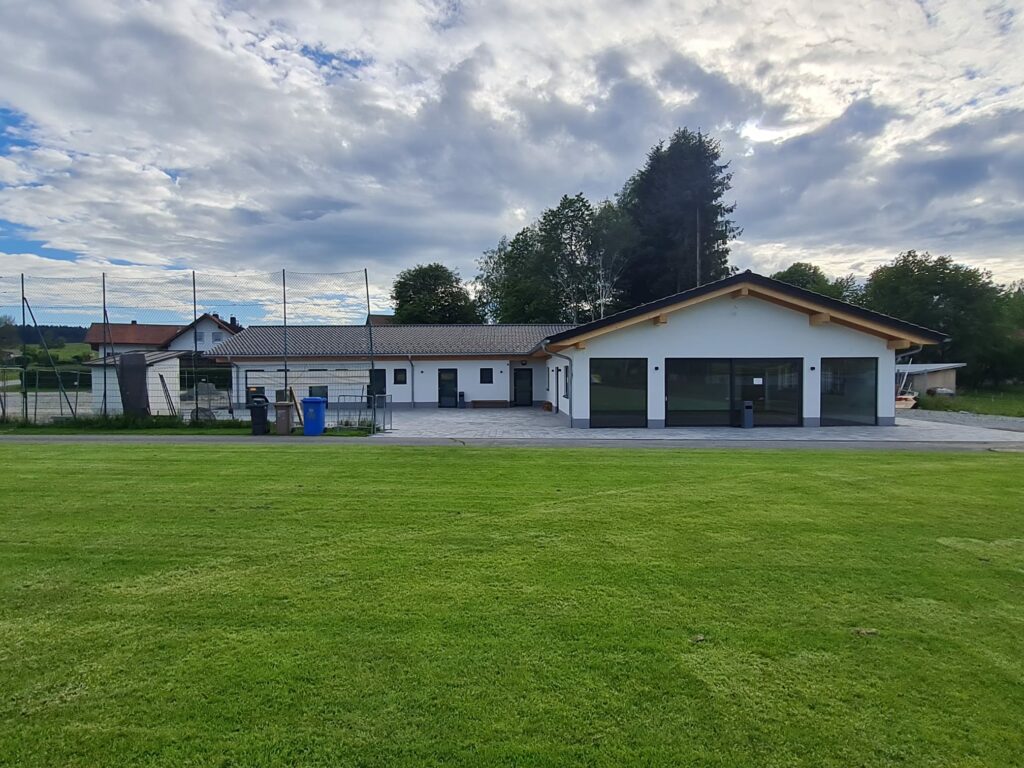

  string(646) "The sports home of the DJK club in Schönbrunn am Lusen is being renovated, enlarged and refurbished to make it more energy efficient. The aim is to make the building smart so that functions such as the lighting and floodlights can be controlled remotely. The entire building technology will be intelligently linked, including the ventilation system, which will be integrated via Modbus TCP/IP. Showers and the multi-purpose room are controlled via humidity CO₂ sensors. There is also a “central off” system, presence detectors for certain rooms and external control of the heating and ventilation. The floodlight system is also integrated."
  ["solution"]=>
  string(1521) "When the request was made, it was clear that the project was a perfect fit for Loxone.

The fact that every room can be switched via Loxone is one of the basics of my projects. Also that certain sockets are controlled via the relay extension.

For the first time, I integrated the CO² sensor tree. This works just as reliably as its analogue predecessor. This is used to open the ventilation flap for the multi-purpose room. Otherwise, the ventilation system only ventilates the showers of the home and away teams in order to regulate the humidity in them.

The floodlight system is also switched via relay extension. Due to existing structures, this could not be implemented in a dimmable manner.

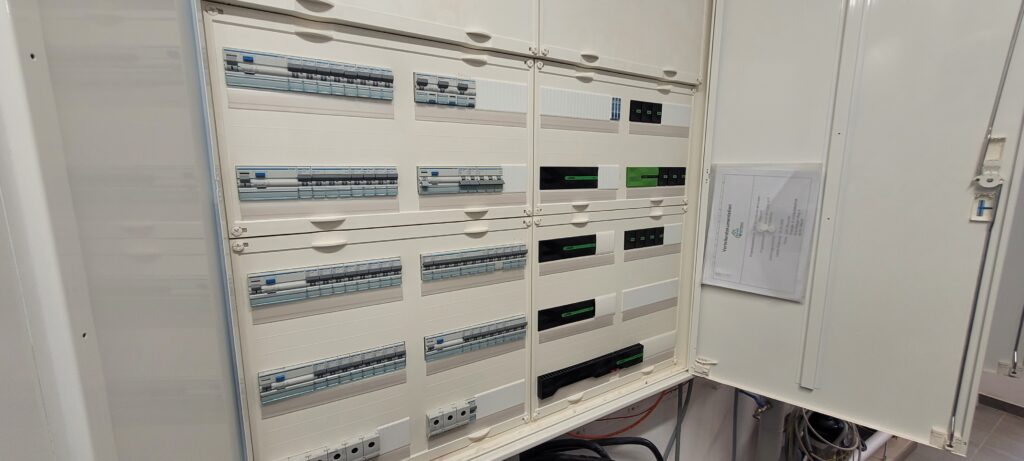

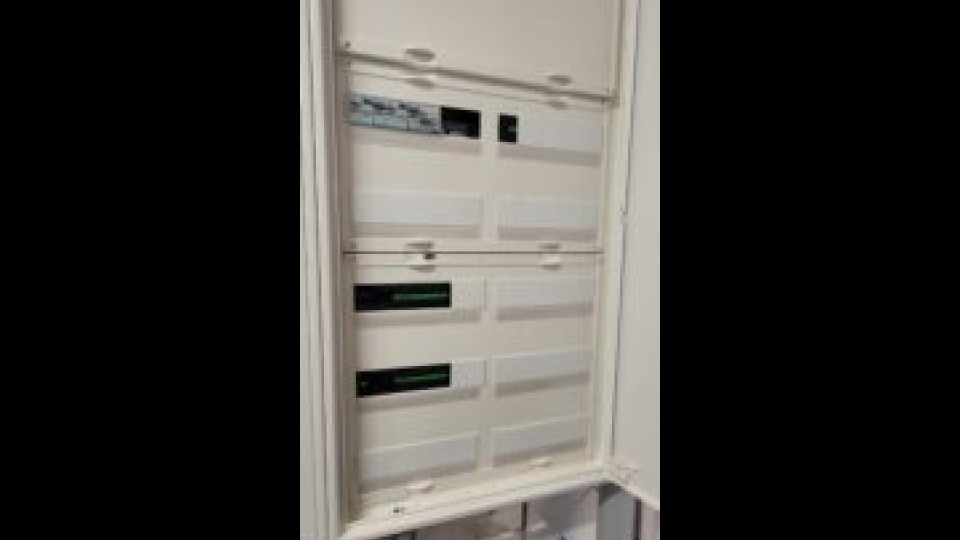

The multi-purpose room is mainly illuminated via RGBW extensions in the sub-distributions and the associated LED strips in suitable aluminum rails.

Another requirement arose during the construction phase: the sprinkler system on the main square using Siemens control was outdated and should now be controlled via a modern system... Loxone, of course....

The sound system in the multi-purpose room is also implemented using Loxone and the audio server. The results are to be announced via an announcement in the Loxone app.

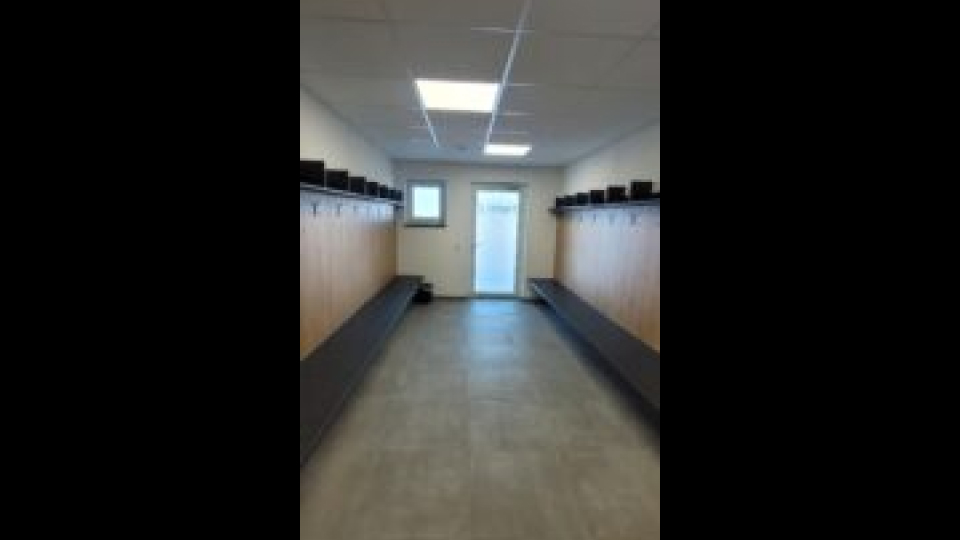

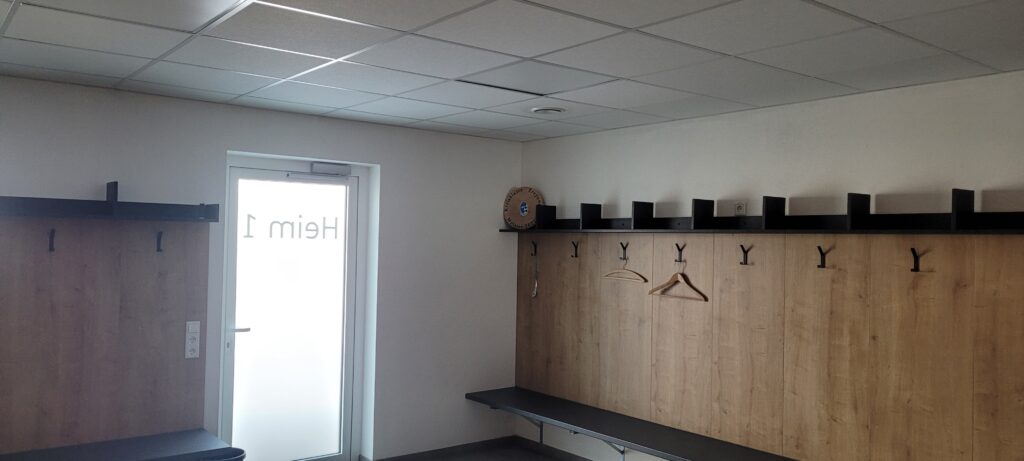

The ventilation system is read and controlled via Modbus TCP/IP. As soon as the CO² levels in the multi-purpose room rise, a flap for the room is opened. The shower rooms are ventilated using a humidity sensor and continuously regulated.

"
  ["partner_quote"]=>
  string(366) "When the inquiry about a smart sports center came in, I was all fired up. Where else can you find smart sports facilities in the rural Bavarian Forest?! It was clear to me from the start that I would choose Loxone. Which system offers such a comprehensive solution with extensive programming from lighting to sound systems to automatic watering of the sports field?!"
  ["partner_quote_name"]=>
  string(16) "Michael Pongratz"
  ["partner_quote_position"]=>
  string(5) "Owner"
  ["more_info_url"]=>
  string(0) ""
  ["preview_image"]=>
  string(81) "https://portal.loxone.com/admin/wp-content/uploads/2024/12/1735584544-768x576.jpg"
  ["application_areas"]=>
  array(3) {
    [0]=>
    string(8) "lighting"
    [1]=>
    string(7) "heating"
    [2]=>
    string(11) "ventilation"
  }
  ["tags"]=>
  array(0) {
  }
  ["project_type"]=>
  array(1) {
    [0]=>
    string(19) "special_application"
  }
  ["copyright"]=>
  NULL
  ["images"]=>
  array(7) {
    [0]=>
    array(2) {
      ["image"]=>
      string(82) "https://portal.loxone.com/admin/wp-content/uploads/2024/12/1735584495-1024x461.jpg"
      ["copyright"]=>
      string(16) "Michael Pongratz"
    }
    [1]=>
    array(2) {
      ["image"]=>
      string(82) "https://portal.loxone.com/admin/wp-content/uploads/2024/12/1735584517-1024x461.jpg"
      ["copyright"]=>
      string(16) "Michael Pongratz"
    }
    [2]=>
    array(2) {
      ["image"]=>
      string(82) "https://portal.loxone.com/admin/wp-content/uploads/2024/12/1735584527-1024x461.jpg"
      ["copyright"]=>
      string(16) "Michael Pongratz"
    }
    [3]=>
    array(2) {
      ["image"]=>
      string(82) "https://portal.loxone.com/admin/wp-content/uploads/2024/12/1735584544-1024x768.jpg"
      ["copyright"]=>
      string(11) "Martin Denk"
    }
    [4]=>
    array(2) {
      ["image"]=>
      string(67) "https://portal.loxone.com/admin/wp-content/uploads/2024/12/04-1.jpg"
      ["copyright"]=>
      string(16) "Michael Pongratz"
    }
    [5]=>
    array(2) {
      ["image"]=>
      string(82) "https://portal.loxone.com/admin/wp-content/uploads/2024/12/1735584590-1024x461.jpg"
      ["copyright"]=>
      string(16) "Michael Pongratz"
    }
    [6]=>
    array(2) {
      ["image"]=>
      string(65) "https://portal.loxone.com/admin/wp-content/uploads/2024/12/05.jpg"
      ["copyright"]=>
      string(0) ""
    }
  }
  ["country"]=>
  string(2) "DE"
  ["city"]=>
  string(20) "Schönbrunn am Lusen"
  ["build_year"]=>
  string(4) "2024"
  ["square_meters"]=>
  string(6) "337 m2"
  ["account_data"]=>
  array(4) {
    ["id"]=>
    string(36) "236efd92-63d3-43f9-b865-88bf972d00b5"
    ["name"]=>
    string(40) "EGT Pongratz - Energie & Gebäudetechnik"
    ["website"]=>
    string(0) ""
    ["partner_website"]=>
    string(59) "/partner/94151-mauth/egt-pongratz---energie--gebudetechnik/"
  }
  ["conference"]=>
  string(4) "none"
  ["products"]=>
  array(11) {
    [0]=>
    array(2) {
      ["sku"]=>
      string(6) "100512"
      ["name"]=>
      string(18) "Miniserver Compact"
    }
    [1]=>
    array(2) {
      ["sku"]=>
      string(6) "100429"
      ["name"]=>
      string(16) "Stereo Extension"
    }
    [2]=>
    array(2) {
      ["sku"]=>
      string(6) "100038"
      ["name"]=>
      string(15) "Relay Extension"
    }
    [3]=>
    array(2) {
      ["sku"]=>
      string(6) "100283"
      ["name"]=>
      string(12) "DI Extension"
    }
    [4]=>
    array(2) {
      ["sku"]=>
      string(6) "100014"
      ["name"]=>
      string(16) "1-Wire Extension"
    }
    [5]=>
    array(2) {
      ["sku"]=>
      string(6) "200109"
      ["name"]=>
      string(29) "1-Wire temperature sensor set"
    }
    [6]=>
    array(2) {
      ["sku"]=>
      string(6) "100466"
      ["name"]=>
      string(40) "Flush-mounted Presence Sensor Tree White"
    }
    [7]=>
    array(2) {
      ["sku"]=>
      string(6) "100401"
      ["name"]=>
      string(21) "Power Supply & Backup"
    }
    [8]=>
    array(2) {
      ["sku"]=>
      string(6) "100276"
      ["name"]=>
      string(59) "Room Comfort Sensor Tree White (CO2, Temperature, Humidity)"
    }
    [9]=>
    array(2) {
      ["sku"]=>
      string(6) "100239"
      ["name"]=>
      string(20) "RGBW 24V Dimmer Tree"
    }
    [10]=>
    array(2) {
      ["sku"]=>
      string(6) "100264"
      ["name"]=>
      string(53) "Room Comfort Sensor Air White (Temperature, Humidity)"
    }
  }
