The challenge of this install was to create a fully functioning cinema experience whilst also keeping the room as a multi-functional living space.
Solution

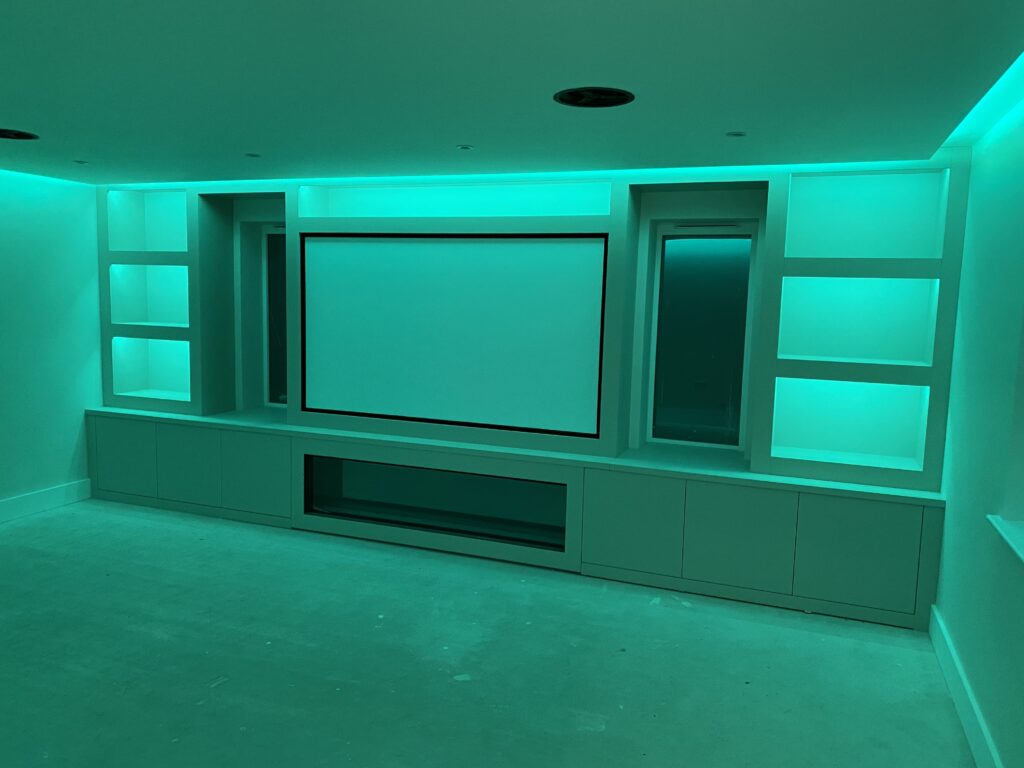

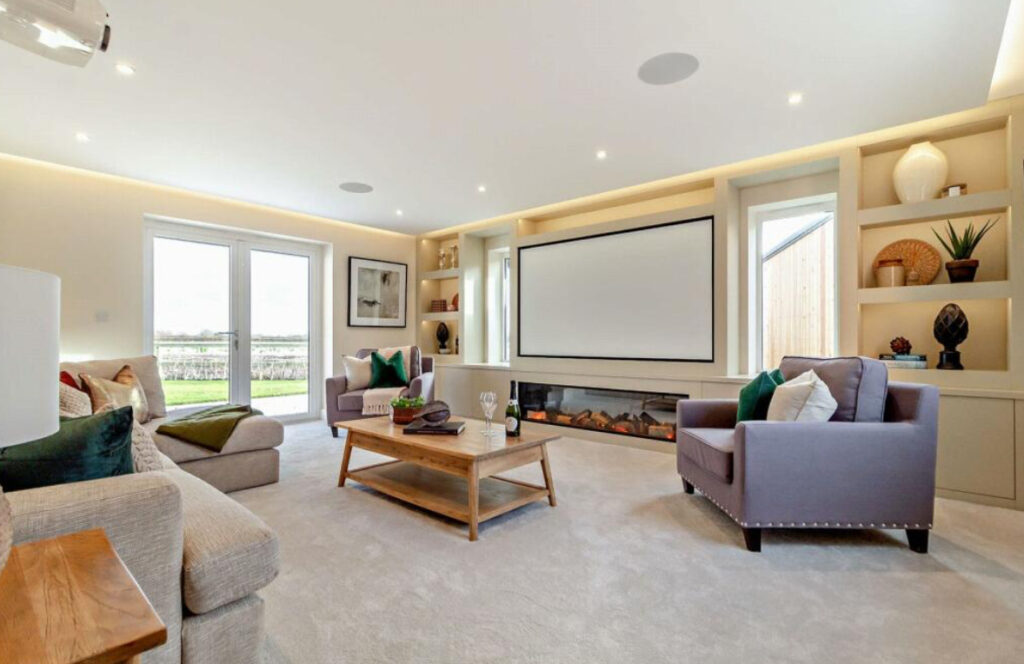

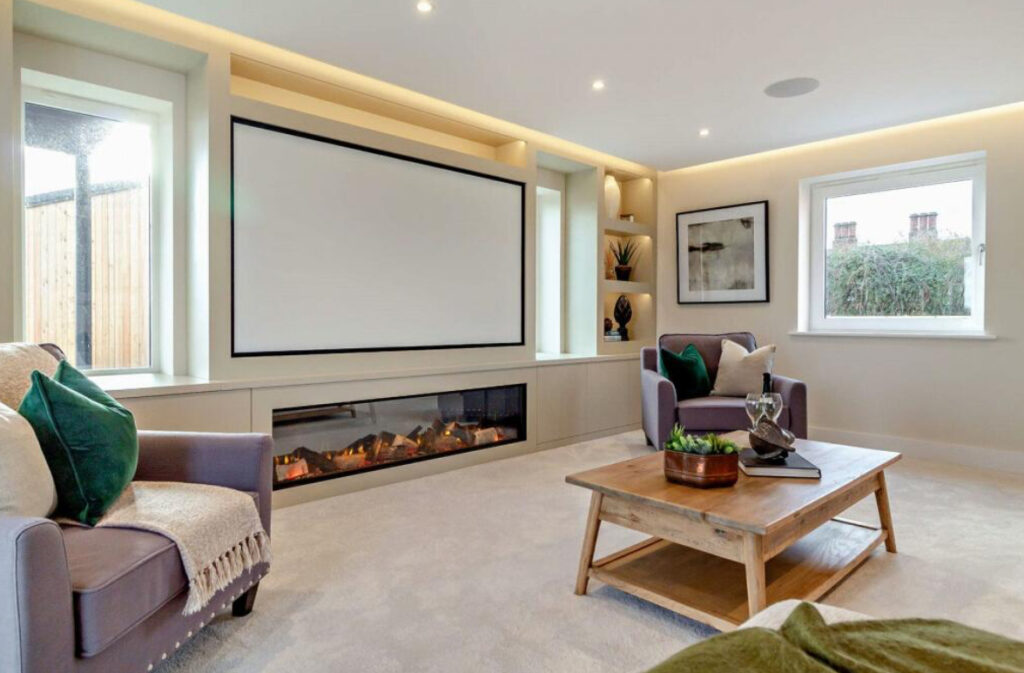

In this new built property, the developer had a number of ideas for a media wall/cinema room installation, however the positioning of the doors and windows reduced options and so a compromise on specification had to be reached. The room in the end could not be solely used as a dedicated cinema room, so designs were scaled back to create a media wall with multimedia and lighting control.

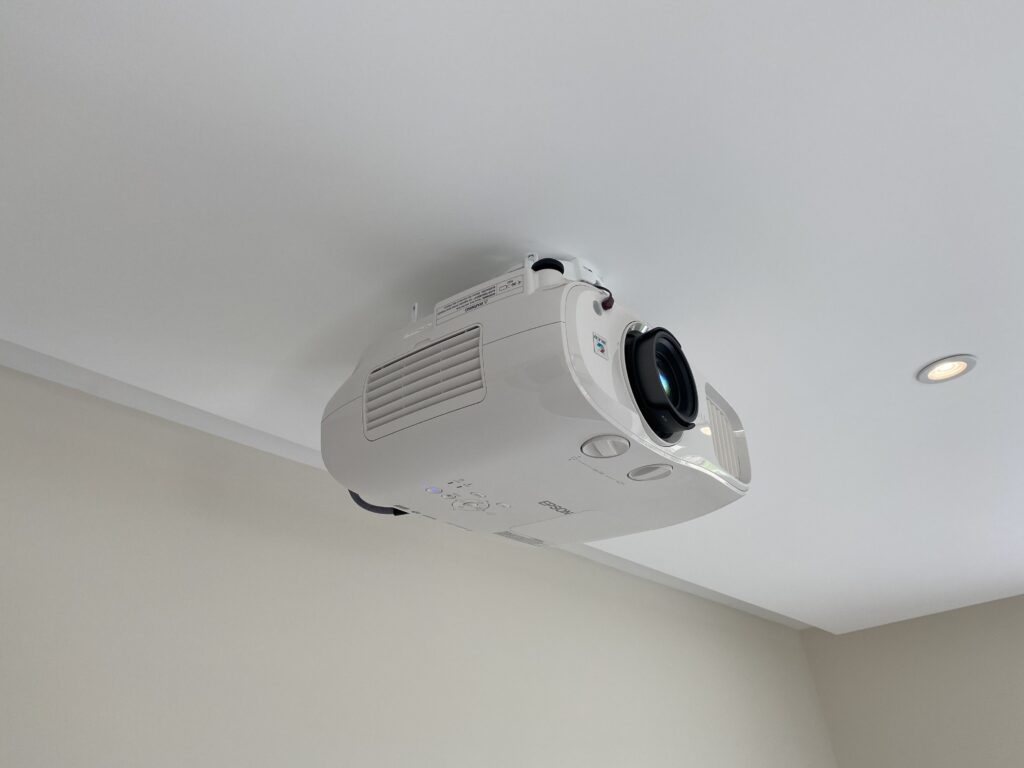

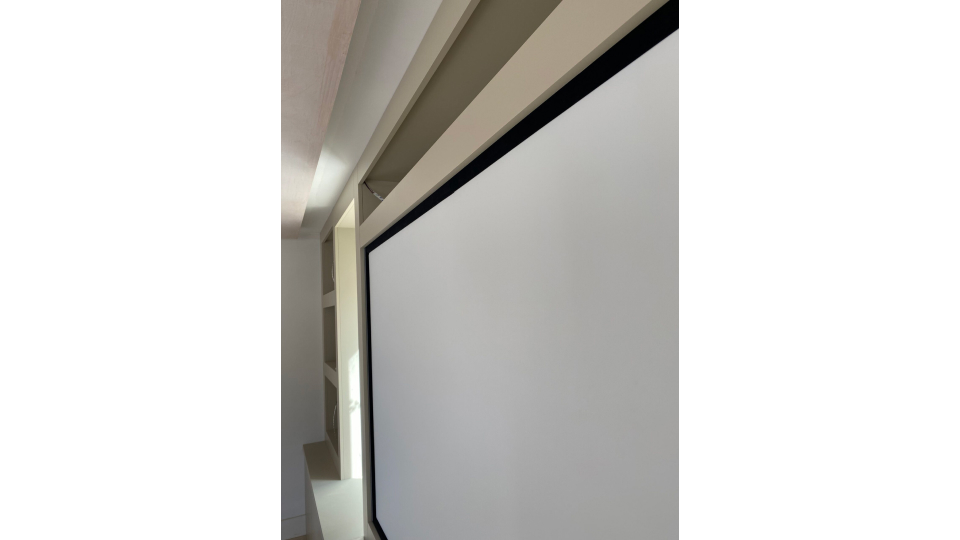

The Loxone equipment that was used was a Miniserver Go, 4 x RGBW 24V Dimmer Airs, 2 x Nano Dimmer Airs, 3 x Power Supplies, a Remote Air and a Touch Pure Air switch to control the equipment. A Yamaha AV receiver, Monitor audio in wall speakers and subwoofer, along with an Epson project and Sapphire screen allows a high-end finish on a budget. RGBW LED Strips were used for a feature lighting finish, allowing many moods customisable through the Loxone App, which were installed both in a dropped ceiling feature and within the media wall cabinet itself. The Touch Pure Air switch has been programmed to control the lighting moods, the AV receiver, the projector and the volume. This also means when you have selected the film you want to watch and press play, the lights automatically dim, then switch off for “movie time” then if the pause or stop button is pressed, ambient lighting is switched on.

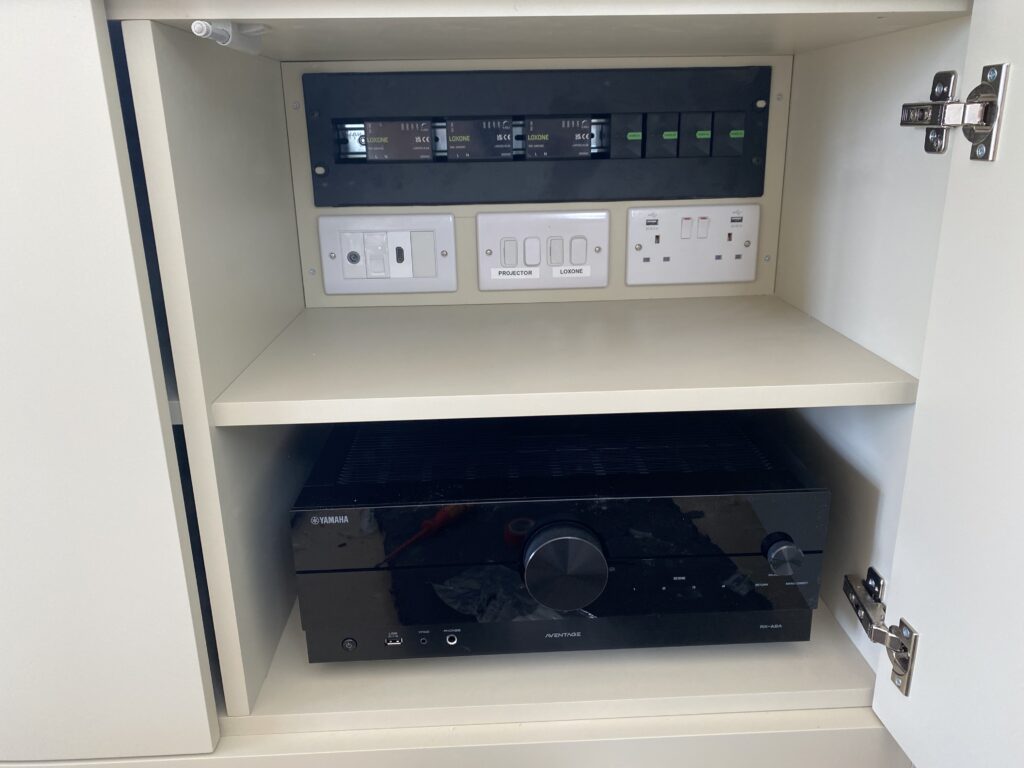

The media wall cabinet was designed and installed by MiaOak, who we worked with closely to ensure a mm exact finish. With the Loxone equipment fitting nicely in one of the cupboards within the media wall so that it is hidden away.
Even though this is the only room to use Loxone, it integrates seamlessly within the house and the ease of use for control with the App is welcomed by the new owners. The customisable programming and control of the switch is unrivalled and not available with any other system.
